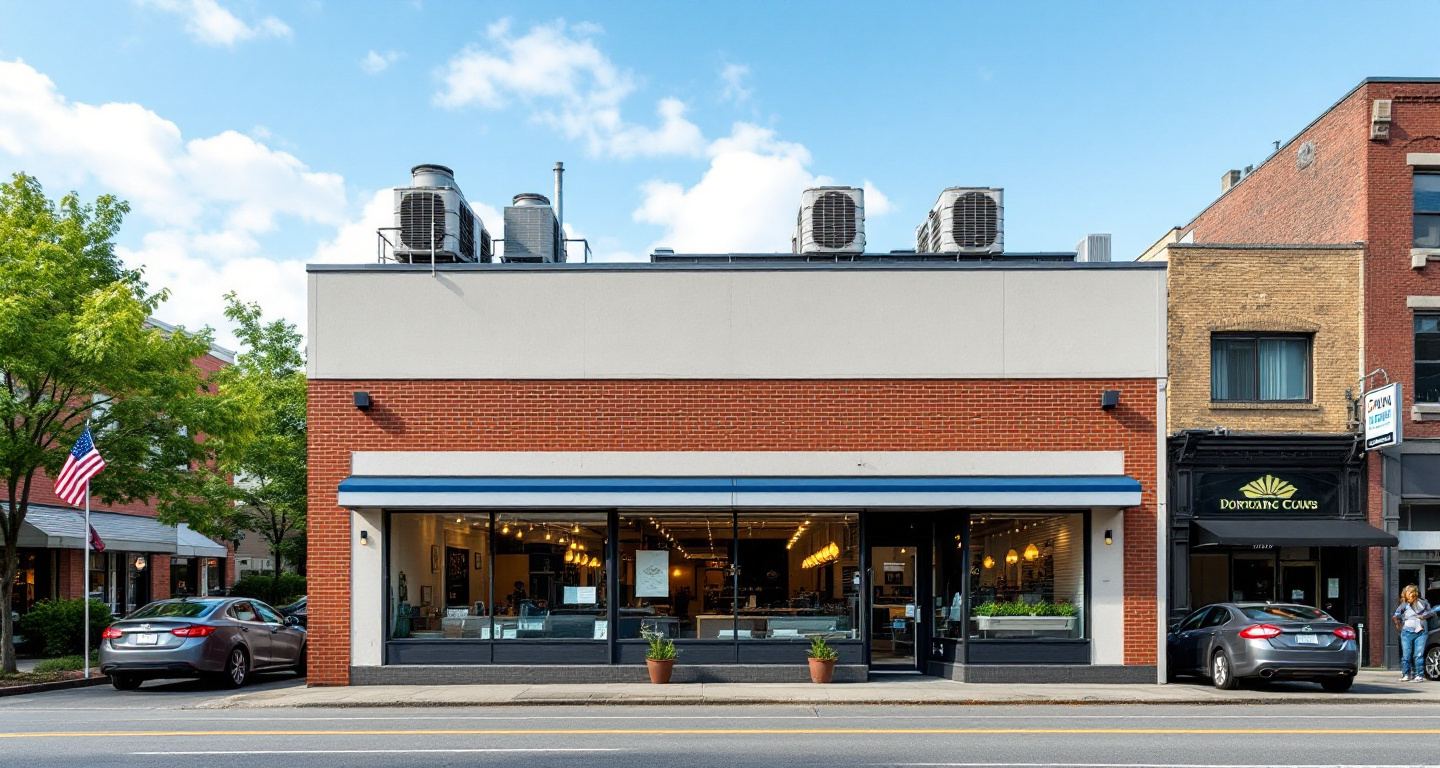

What RTUs Are and Why They Dominate Small Commercial Buildings
A rooftop unit is an all-in-one system. The compressor, condenser coils, evaporator coils, blower, and heating elements are all housed in a single cabinet that sits on the roof. Ductwork runs from the unit down through the ceiling to supply conditioned air below, with return air grilles pulling air back up to complete the loop.
This packaging is the whole point. Because every component lives in one box, installation is comparatively straightforward: crane the unit onto the curb mount, connect the ductwork penetration, run the electrical, and commission the controls. For a property owner, it also means a single maintenance point, equipment that does not consume floor area, and nothing to create noise complaints inside the tenant space. General background on HVAC equipment is at https://en.wikipedia.org/wiki/HVAC.
How RTUs Differ from Split Systems
A split system divides its functions between two separate units connected by refrigerant lines. The condenser and compressor sit outside while the air handler or furnace sits inside. The two halves communicate through copper lines and electrical wiring that runs between them.
Split systems make sense where the roof cannot support packaged equipment, where the building layout favors indoor mechanical space, or where zoning needs are complex from the start. RTUs simplify things by consolidating everything into one rooftop location. The trade-off is that you are committed to that location for the life of the equipment, and any failure affects the whole unit rather than an isolated component that might be swapped independently.
Single-Zone Versus Multi-Zone Applications
A single-zone RTU serves one thermostat and one area. This is the most common setup for small tenant suites, retail bays, and individual offices. It is simple to operate and straightforward to troubleshoot.
Multi-zone applications become relevant when a building has areas with meaningfully different thermal loads. A restaurant with a kitchen, a dining room, and a storage area is a clear example. Running those spaces from a single thermostat means some areas are always uncomfortable. Multi-zone RTUs pair one rooftop unit with variable volume controls or zone dampers so the system can respond to different demands across the building. Some buildings instead use multiple single-zone units, each serving its own area. The right approach depends on the layout, the ductwork, and how granular the control needs to be.
Curb Mounting and Roof Considerations
Nearly every commercial RTU sits on a roof curb, which is a raised metal frame that seals the unit to the roofing membrane and provides the ductwork penetration point. The curb keeps water from migrating around the opening and gives the unit a stable, level base. When a unit is replaced, the curb often stays in place if it is still in good shape, which simplifies the job considerably.
The roof itself has to handle the load. Placement needs to account for structural support points, and penetrations for ductwork, electrical conduit, and drain lines must be properly flashed and sealed. In Portland's wet winters, an improperly sealed penetration around an RTU does not stay dry for long. Any service work or replacement that disturbs the roof surface should be followed by a roofing inspection of the penetrations and flashing.
Lifespan and Signs an RTU Needs Attention
A well-maintained RTU in a Pacific Northwest climate can give many years of reliable service. Several factors accelerate wear. Clogged filters force the blower to work harder and stress the compressor. Dirty coils reduce efficiency and cause overheating. On the roof, debris accumulation and standing water contribute to corrosion. Portland's persistent dampness means surface rust is cosmetic on well-built equipment, but sustained moisture intrusion into electrical components shortens the unit's life in ways that are not always visible until something fails.
Some signs of trouble are obvious: the unit is not producing conditioned air, it cycles on and off rapidly, or there is a new grinding or banging sound. Others are subtler. Increasing tenant temperature complaints without a change in setpoint, rising energy costs with no clear explanation, or visible ice on the unit or refrigerant lines during cooling all point to a system working outside its normal range. Water stains on ceiling tiles below the ductwork can mean a condensate drainage problem or a duct insulation failure.
On the roof, a corroded cabinet, damaged coil fins, disconnected ductwork at the penetration, or a compromised curb seal are all conditions worth noting during any maintenance visit. Regular preventive service, at least before the heating season and before summer, gives a technician the chance to catch developing problems before they become failures. A broader Portland-metro home-comfort overview is at https://sites.google.com/view/efficiency-heating-cooling.
